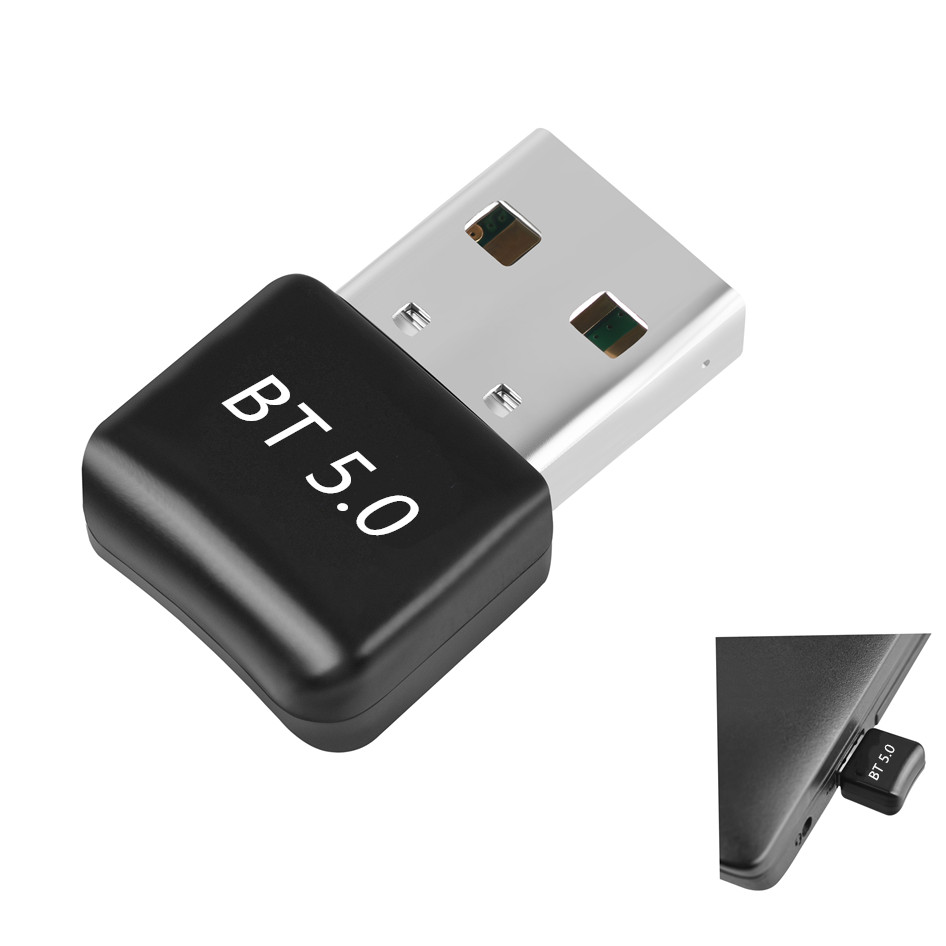

Product Code: BT5.0 Bluetooth USB Adapter

Specification:

1.Dual-mode support Bluetooth 5.0 low energy

(Backward compatible 2.0/3.0/4.0)

2.Full-speed USB 2.0 interface

3. Bluetooth v5.0 specification compliant

4. 2.402-2.48GHZ ISM Band

5. Low power Consumption

6. Class II power standard, distance of 10-20 meters.

7. Support Bluetooth EDR data rate to 3Mbps

8. LED Indication: Power on、Linking、Standby、

9. System Support:Windows7、Win8、Win8.1、Win10.

10. Software Support : Realtek Driver

11.Chipset:RTL8761B

12.  Support Profile: Serial Port、Object Push、File Transfer、LAN Access、Personal Area Network、Audio Geteway、 Heatset HID、Keyboard、Mouse、HCRP(Printer Cable Replacement)、Bluetooth Low Energy、PIM Synchronization Profile, A2DP、AVRCP、Bluetooth low energy

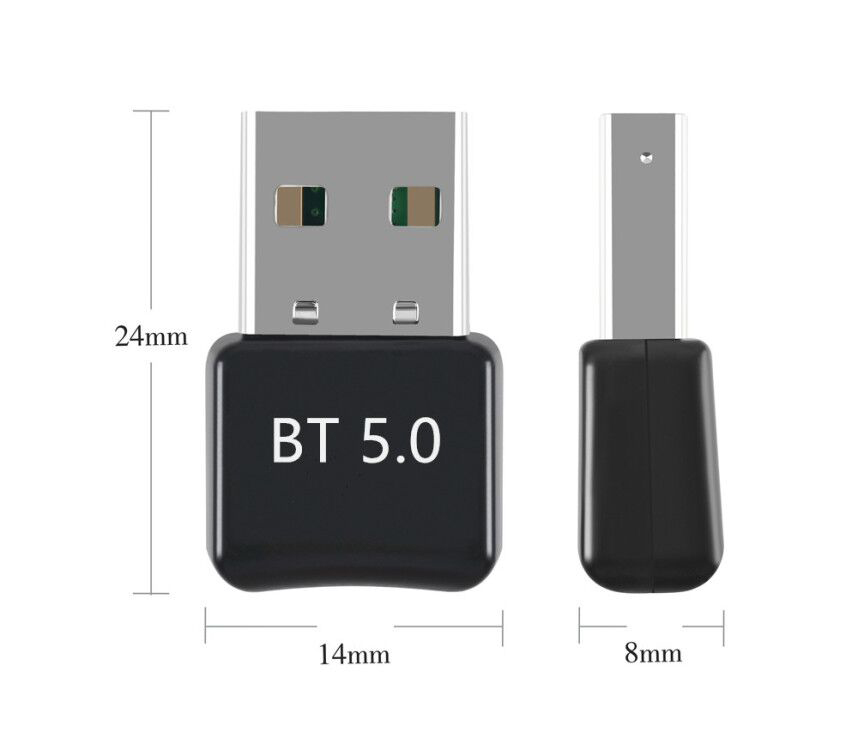

13. Size:  19×17×8 mm

14. Weight: 3 g

15. Operating Temperature:-10-50℃

16. Storage Temperature:-20-70℃

17.Supports Devices:

Bluetooth Headset/Bluetooth Keyboard/Bluetooth Mouse/Bluetooth Speaker/Mobile phone/Printer/Computers/Game Controller

PARAMETERS
TECHNIC DATA

General Specification:

                            Bluetooth  Specification

Standard

Bluetooth V5.0

Profiles

Bluetooth low energy

Dual-mode Bluetooth

Frequency Band

2.402G-2.480G

Sensitivity

-86dBm@.01%BER

RF TX Power

+6dBm(Class П)

                     Power

Supply Voltage

5V DC(MAX5.75V)

Working Current

Depends on profiles, 22mA typical



Standby Current (Connected )

  0.4uA



  Operating  Environment



Temperature

-20 to  +70



Humidity

10%-90% Non- Condensing



Environmental                RoHS Compliant
